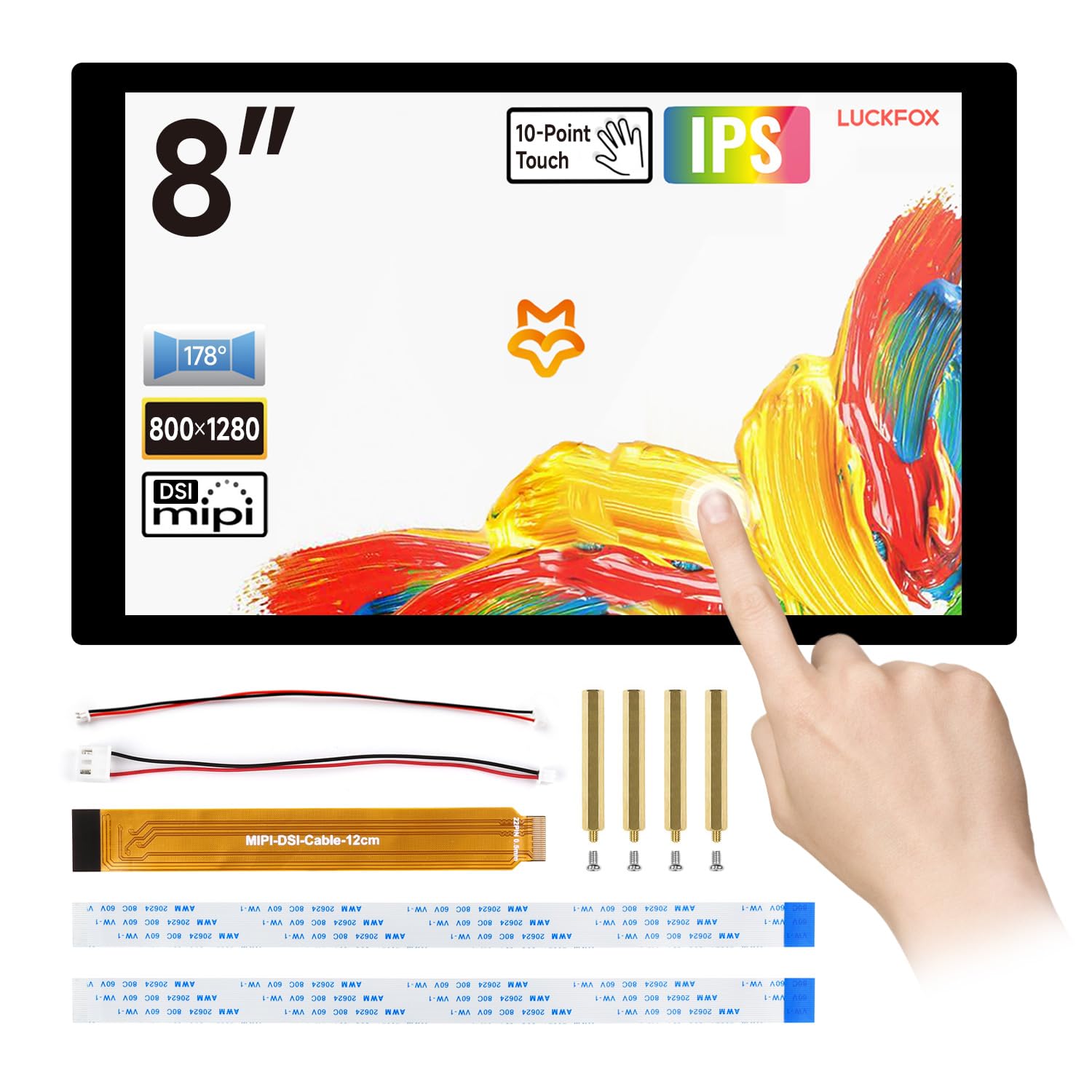

LUCKFOX 8-inch DSI Capacitive Touchscreen for Pi 5 Omni3576/Lyra/ESP32-P4-NANO Series Board 800x1280 IPS Panel 10-Point Touch Ultra-Thin Support Raspberry Pi/RK3576/RK3506

Marke: LUCKFOX
Auflösung: 800x1280
Aktualisierungsrate: 60 Hz
Maximale Displayauflösung: 800_x_1280 pixels
Besonderes Merkmal: Special Feature
Konnektivitätstechnologie: DSI
Display-Typ: IPS
Bildschirmtechnologie: LCD
Modellname: LUCKFOX 8-DSI-TOUCH-A
Betrachtungswinkel: 178 Grad

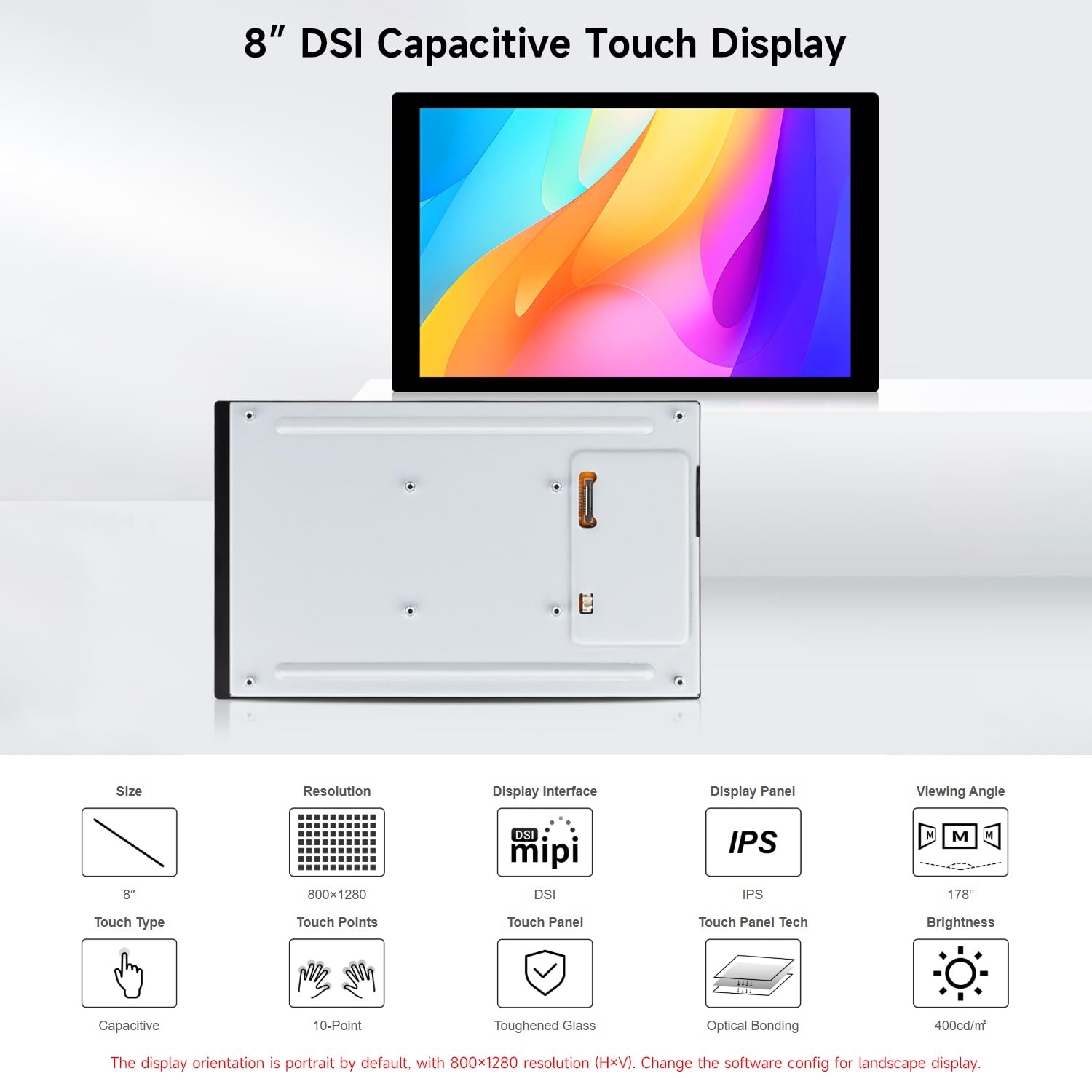

- 8-inch IPS Display – High-resolution 800x1280 (HxV) with 178° wide viewing angle and 400cd/㎡ brightness (software-adjustable)

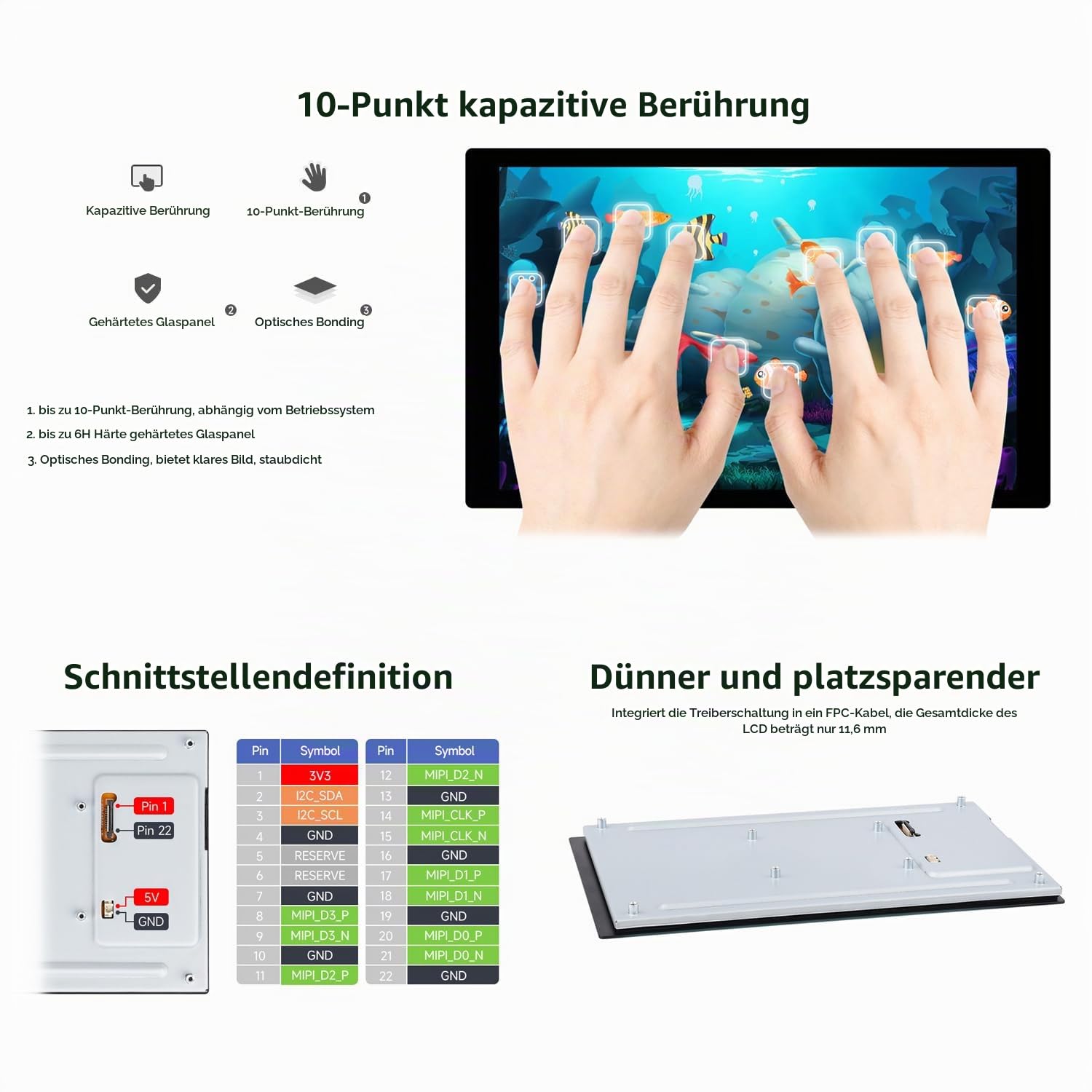

- 10-Point Capacitive Touch – Smooth multi-touch support with tempered glass (6H hardness) and full lamination for clarity & durability
- Ultra-Thin & Space-Saving – Only 11.6mm thick with integrated FPC driver circuit and aluminum alloy passive cooling backshell

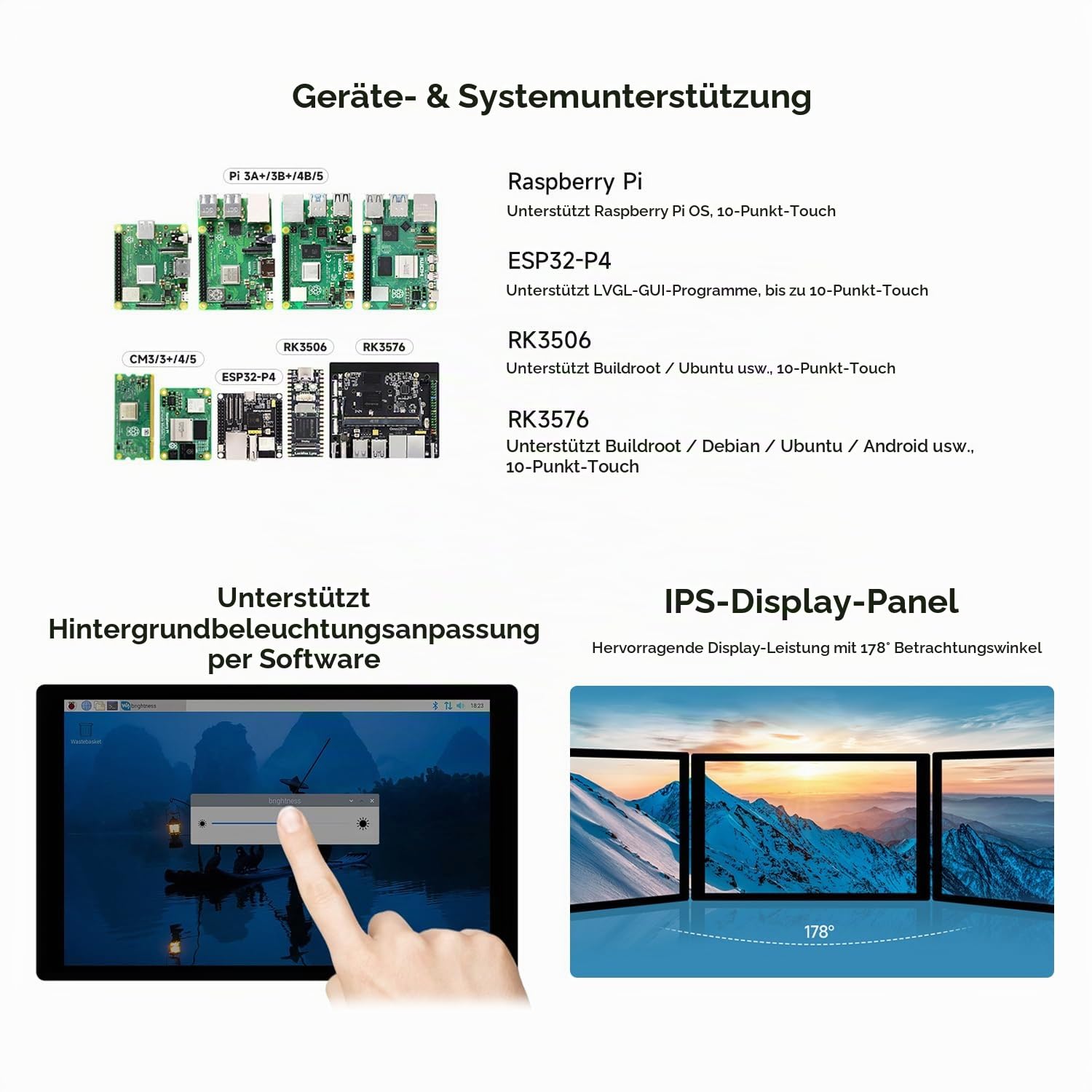

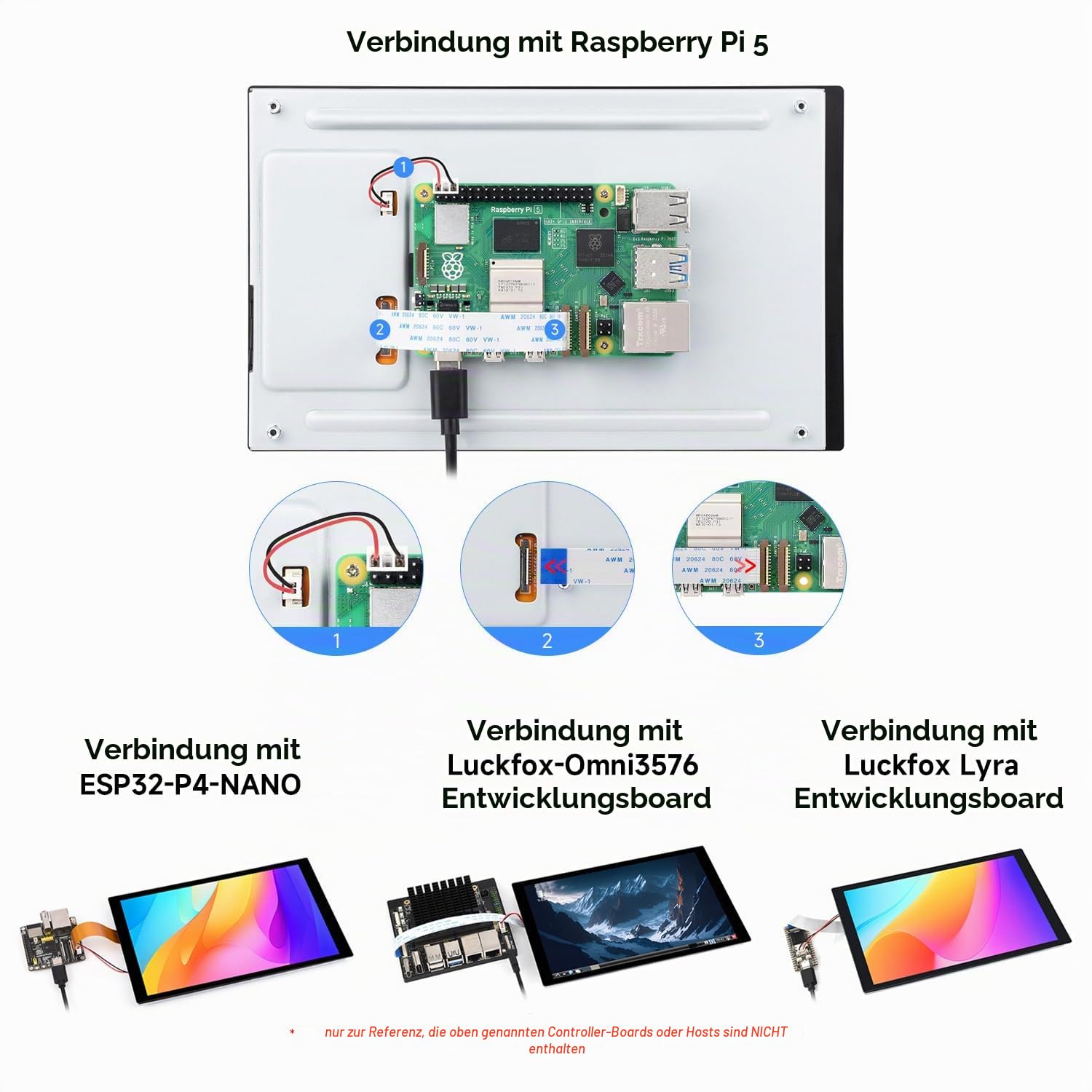

- Multi-System Compatibility & 10-point touch Support – Compatible with Raspberry Pi (e.g., Raspberry Pi 5)–support Raspberry Pi OS. Compatible with RK3576 (e.g., LUCKFOX Omni3576)–support Buildroot, Debian, Android. Compatible with RK3506 (e.g., LUCKFOX Lyra Series board)–support Buildroot & Ubuntu. Compatible with ESP32-P4 (e.g., ESP32-P4-NANO)–support LVGL UI customization
- DSI Interface & 60Hz Refresh Rate – Supports both portrait/landscape modes via software, ideal for embedded and industrial applications
